In the field of automotive chassis repair, Wheel Alignment is considered "chassis surgery," as its measurement accuracy directly affects vehicle driving safety and tire life. Industry data shows that over 70% of vehicle misalignment and abnormal tire wear issues are related to misalignment. As the core contact component of the alignment system, the choice of fixture often becomes a key factor determining measurement accuracy. Currently, the mainstream tire-gripping quick-release fixtures, magnetic fixtures, and four-point fixtures on the market serve different business scenarios with their respective technical characteristics, forming a triangular game of "efficiency versus precision."

Technical Analysis: Physical Characteristics and Precision Logic of the Three Types of Fixtures

Tire-Gripping Quick-Release Fixtures: A Convenient Choice Prioritizing Efficiency

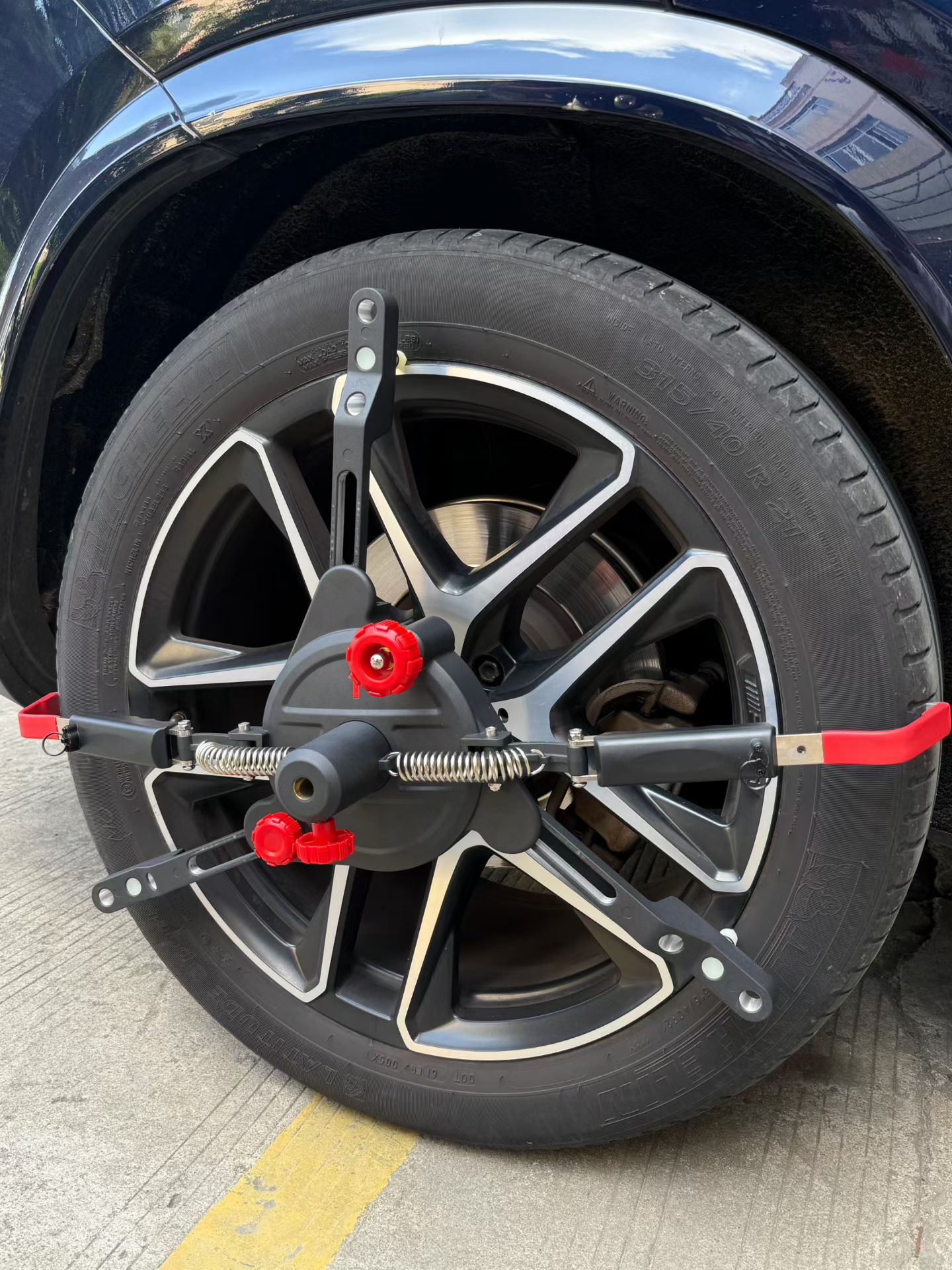

These fixtures use a robotic arm to directly grip and fix the tire tread, their biggest advantage being the extreme simplification of the operation process. Technicians don't need complex alignment; simply pushing the clamp's jaws towards the tire sidewall completes the installation. A single operation typically takes less than 15 seconds, making it particularly suitable for the fast-paced needs of quick repair and maintenance shops.

However, this convenience masks potential accuracy issues. Because the clamp connects to the rim via the tire, and the tire, being a pneumatic rubber product, is entirely dependent on tire pressure fluctuations for dimensional stability. Experimental data shows that when tire pressure deviates from the standard value by 0.3 Bar, the camber angle measured by the clamp may deviate by ±0.1°. This "soft connection" characteristic significantly reduces the reliability of measurement data when dealing with vehicles with uneven tire pressure or uneven tire wear.

Suitable Scenarios: Suitable for service environments where wheel alignment is a quick inspection item (e.g., used car inspection, routine maintenance services) and where absolute precision requirements are not stringent.

Magnetic Clamp: A Precise Partner for Steel Rims

Using a powerful permanent magnet to adhere to the center plane of the rim, the magnetic clamp successfully avoids the interference of tire pressure on the measurement system. It directly reads the wheel's true posture through the rigidity of the wheel hub, theoretically achieving higher measurement consistency. Currently, mainstream products generally have a magnetic strength exceeding 200N, sufficient for the stable requirements of most measurement scenarios.

However, the precision limitations of magnetic clamping technology are also significant—it is extremely sensitive to the geometry of the wheel hub's center plane. When the wheel hub has slight deformation, an oxide layer in the central area, or impurities, the integrity of the magnetic coupling is compromised. More importantly, the several attraction points at the center of the wheel hub must form a complete plane; any local depression or bulge will cause the clamp to tilt slightly, introducing measurement errors. Real-world examples show that when using magnetic clamps on modified or repaired wheels, the data fluctuation rate is more than 40% higher than on original factory wheels.

Applicable Scenarios: Best suited for standardized measurements of original factory steel wheels or intact aluminum alloy wheels, offering superior accuracy compared to tire-gripping clamps when wheel conditions are ideal.

Four-point clamps: the precision benchmark for professional services

As standard equipment in professional wheel alignment centers, four-point clamps employ the most traditional mechanical positioning principle—directly clamping the wheel hub edge through four precision-machined contact points. This seemingly "clumsy" design maximizes measurement accuracy. By completely bypassing the tire and wheel hub center planes and directly contacting the most precise mounting surface of the wheel hub, it is immune to both tire pressure fluctuations and abnormal wheel hub center shape.

Operating four-point clamps does require more training. Technicians need to master the correct clamping force (typically 3-5 N·m) and ensure even force distribution across the four contact points. However, empirical data shows that after practical training on 20 vehicles, technicians can improve their installation speed to under 30 seconds, a difference that is no longer significant compared to magnetic clamps. More importantly, its repeatability measurement consistency error can be stably controlled within ±0.02°, a performance far exceeding the other two methods.

Applicable Scenarios: Chassis repair shops, 4S dealership technical centers, racing car tuning studios, and other professional environments with extremely high precision requirements.

Selection Strategy: Rational Decision Based on Business Positioning

Precision-Prioritized Selection

For shops that consider wheel alignment as a core business or plan to develop specialized chassis repair, four-point clamps are undoubtedly the best technical choice. Although the initial learning cost is higher, the benefits are:

Improved diagnostic capabilities for complex vehicle malfunctions

Building a professional image of customer trust

Avoiding the risk of rework due to measurement errors. In the long run, this technological investment will yield substantial returns by increasing average order value and customer loyalty.

Efficiency-First Choices

For general shops where wheel alignment is only an auxiliary service, the following options can be flexibly chosen based on the characteristics of the main customer group:

Magnetic clamps: If the serviced vehicles are mainly original equipment and the wheel rims are generally in good condition.

Tire-gripping clamps: If extreme efficiency is pursued and the customer has a high tolerance for precision.

Maintenance Consensus: The Survival Rules of Precision Tools

Regardless of the chosen technology, the essence of clamps as precision measuring tools remains unchanged. Daily use must adhere to the following:

Avoid any form of impact or drop; store in a dedicated protective box.

Regularly clean contact surfaces, keeping them free of oil and metal shavings.

Periodic calibration and verification as required by the manufacturer. A well-maintained four-point clamp can last for more than 5 years, while a poorly maintained product may lose accuracy within 1 year.

Conclusion: The Eternal Theme of Technological Evolution

The evolution of clamp technology reflects the Automotive Repair industry's continuous exploration between efficiency and precision. Under current technological conditions, the three types of clamps form a complementary ecosystem that meets different needs. For industry professionals, understanding the physical principles and precision logic behind each technology, and making rational choices based on their own business development stage, is the right path for technology to empower business. In the wave of automotive intelligence and electrification, chassis systems are ushering in a new round of technological revolution, and the precision standards of wheel alignment technology, as the guardian of chassis health, will inevitably rise accordingly—investing in the future starts with choosing the right clamps.
