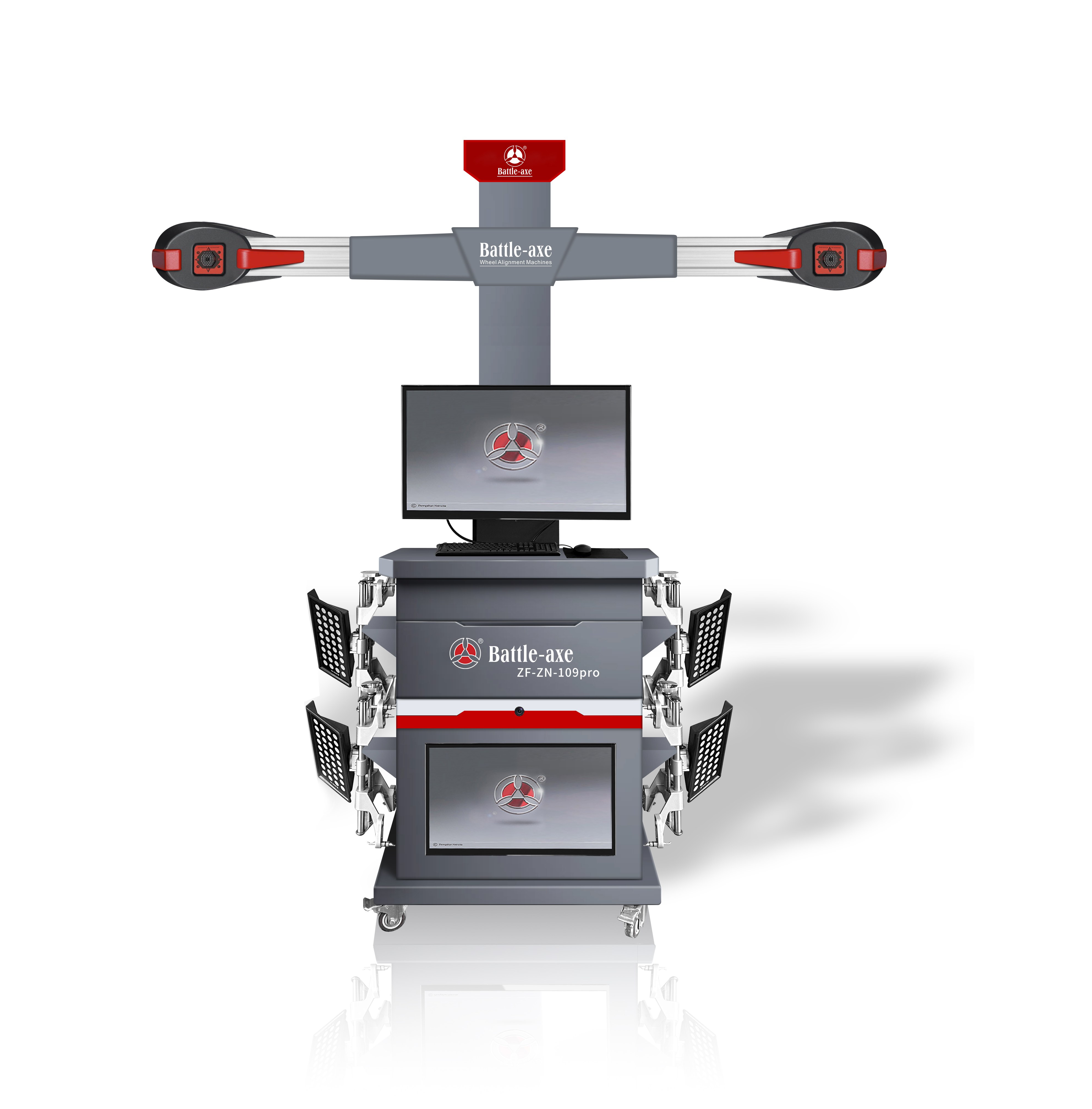

Battle Axe 3D-ZD-9S Garage equipment car inspection machine 3D wheel aligner
3D-ZD-9S Wheel Alignment machine Key Features
-Automatic Target Tracking , Camera beam Length:2782mm
-10cm rolling compensation. Complete all measurements with just one push-pull action.
-Utilizes PRTC technology (no pushing, no rolling, no tower, no compensation) for instant measurement without rolling compensation within 3 seconds.
-Features 2 industrial-grade 5-megapixel cameras with F6.0 lens for a wide field of view, and an optional F12.0 lens for an even larger view. -Displays all dynamic measurement data (toe, camber, caster, etc.) on one interface.
-Offers vehicle body size measurement and adjustment, with all cameras well calibrated before shipment and ready for use after installation, eliminating the need for recalibration after years of use.
-Includes front wheel alignment function and 3D animation video for repair guidance.
-Features 4 replaceable target plates, saving working time by eliminating the need to focus on target position.
-Calibration data is stored in camera chips, not on PC, allowing the machine to continue working without recalibration after PC replacement. -Offers customization services.
-Vehicle database sourced from "Autodata", car manufacturers, and customers, with free monthly updates.
-Includes parking guidance view for accurate, easy, and quick vehicle positioning on the turntable. -Allows software remote control on all devices and operating systems. -Instant camera view recovery after blockage during measurement.
-Includes a frequently measured database designed for efficient technician work, with free monthly updates and the ability for users to add their own database.
-Allows saving, backing up, exporting, and importing customer files.
-Displays measurement results on one or multiple interfaces based on technician requirements.
-Supports all languages, with translation and use of engineer and professional language only.
-Offers color printing for reports.
01
3D-ZD-9s Wheel Alignment machine Configuration
Configuration(all configuration is subject to contract confirmed by both party)
HP brand Computer:1pc
WIN 10 PreInstalled
Camera: Calibrated industrial 5 mega pixels/2 pcs
HP/Canon Printer: 1pcs
Monitor: 32'' TV set 2pcs
Target plate:Durable/4 pcs(Size：324.2*175*62.6mm Net weight:1.32kgs/pcs，Pin Diameter：22MM)
Brake pedal depressor & Steering wheel holder: 1 pc for each
Clamps: 4 pcs(13"-24")
Turnable palte: 2 pcs(diameter:340MM, thickness:49mm)
Wedge:2pcs
parking guidance camera:1pcs
01
-2 pcs packing version:
Plywood carton: 2400*1180*710mm
Kraft carton: 3000*290*290mm
-3 pcs packing version:
Plywood carton: 1500*1180*710mm
Kraft carton1: 3000*290*290mm
Kraft carton2: 2600*250*290mm
This is for standard installation, for customized installation please please consult factory
1.The beam that has cameras attached should be placed directly in front of the lifter, maintaining a horizontal distance of 2200-3000mm (ideally 2300±100mm) from the beam to the middle of the turntables. Refer to the provided picture for reference.
01
2.The beam must parallel to the center line of two turntable plates:
01
3: The beam's center line must be aligned with the central line of the lift/pit
01
01
Our free support services include customized solutions and designs, market insights and expertise, 24/7 after-service response, monthly database updates, and online video meetings (by appointment).
Paid services include wheel alignment training covering problem analysis, chassis repair, wheel alignment sales, and machine distribution, along with editing, deleting, and adding software functions, and sourcing equipment and tools.
